Blow-Fill-Seal

Advanced Aseptic Filling Technology

A globally-trusted drug packaging process,
reimagined for injectables.

Blow-Fill-Seal (BFS) has evolved over 60 years to become one of the most trusted ways to package sterile liquids. Its versatility enables it to package volumes ranging from 0.2mL to more than 500mL.

BFS Manufacturing Unit

Today, BFS is primarily used in the pharmaceutical industry, where it fills and finishes more than 50 billion units a year of biologics, vaccines, pharmaceuticals and other sterile liquids including OTC products.

But what makes BFS truly special is its combination of reliable aseptic filling with its speed and efficiency of production for any size output. In fact, due to its enclosed process and reliability, the industry considers BFS to be an advanced aseptic process.

It is for these reasons and more that BFS is the heart of ApiJect’s technology platform, enabling ApiJect to reimagine how injectables can better reach everyone in the world.

About Our Platform
Technician Using BFS

Whitepaper

Learn more about why BFS opens up a world of opportunities.

Download ApiJect’s white paper on the Blow-Fill-Seal filling process to better understand how the technology works, its history with a wide range of pharmaceuticals and sterile liquids, recent advances in the field, and more technical specifications to help you decide if BFS is a good option for your drug product.

BFS fills small and large molecules.

A range of small and large molecule drug products, including vaccines, have been tested in BFS, with many coming to market. Notable examples include rotavirus, RSV, and influenza vaccines, as well as Albuterol, Tiotropium, Dornase alfa, and Budesonide.

For new products, regulatory submissions will require stability and compatibility testing in the low-density polyethylene (LDPE) container. ApiJect is well-positioned to help and support this testing which, depending on the product, can be completed in a number of months.

An extremely efficient and reliable manufacturing process.

BFS is a continuous filling process that requires almost no human intervention, which is the main source of contamination for conventional aseptic filling processes.

In a process that takes just a few seconds, LDPE plastic resin is extruded into a mold to form the container, aseptically filled with the drug, and then sealed — all in an ISO Class 5 environment.

The output varies by BFS machine, but higher-end models such as a Rommelag® bp460-15 will produce a strip of 25 BFS containers with 0.65mL fills every 3 seconds, for a total of 15 million units a month.

Blow-Fill-Seal is a continuous 3-second process.

BFS is a highly-efficient, low-human intervention process that aseptically fills up to 500 doses a minute in pharmaceutical-grade LDPE primary packaging.

01 Extruding

BFS machine pours molten plastic into tube shape (“parison”) inside Class A clean space.

02 Blowing

Airstream blows parison open. Bottom mold closes to create 2-chamber shape.

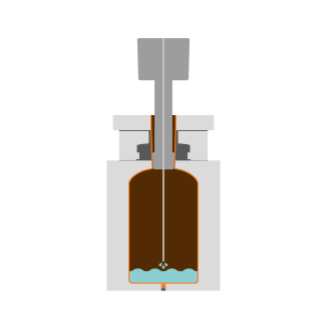

03 Filling

Rod inserted to fill parison with precise dose of liquid vaccine or medicine.

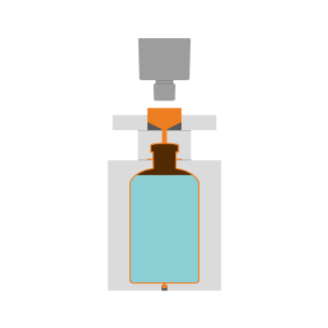

04 Sealing

Upper mold closes, sealing the top of container.

Laser Etched

Laser-Etched Label.

Plastic containers allow for a range of inventive options. For example, as each strip of containers emerges from the BFS machine, the lot number and expiration date are laser-etched on to the label tab of each BFS container. An adhesive label may also be applied to the other side of the label tab if further drug information is required at the dose level.

Punching and Testing

Punching and Testing.

Once the laser-etched strip of BFS containers is released from the BFS machine, the excess plastic trim is “punched” away. Then, the strip of 25 BFS containers is separated into 5-container “cards.”

Each card is taken through a leak detection process that uses a vacuum decay method to 100% leak detect each BFS container.

This is followed by an automated visual inspection processes to detect anything that is critical to quality. Unlike glass, BFS generates few to no particulates in this process, and the raw materials themselves are not a source of particulates.

Pouching Process

Pouching, Labeling,
and Cartoning.

Each card is pouched within foil wrap to help avoid vapor loss and protect against sunlight and oxygen. Product identification, lot and expiry details are printed on the foil wrap.

Finally, each wrapped card is efficiently packed in a carton and then a box, and prepared for shipping. The small and compact size of a BFS container potentially allows for very efficient use of a cold chain, if required.

Benefits of the BFS process.

Technician on machine

Alternative Supply Chain

Traditional glass vials and prefilled syringes use a multi-facility, complex international supply chain to fill and finish drugs. BFS uses an alternative supply chain that is much shorter and simpler, and very difficult to disrupt.

The only raw material needed for BFS (other than the drug) is pharmaceutical-grade plastic resin, which is widely available and can be sourced locally in all major countries. Further, resin can be stored relatively long periods of time, allowing for stockpiling in case of emergencies.

manufacturing process

BFS means speed and efficiency

Blow-Fill-Seal is known for its high-efficiency output. For example, a Rommelag® bp460-15 BFS machine can aseptically package 25,000 containers per hour.

But what is less well known is that BFS provides many additional inherent benefits. These include greater than 90% uptime, no preservatives needed in the drug product, and almost no human intervention.

Vials

Plastic Allows for Volume Flexibility

BFS containers are made from pharmaceutical-grade polymers, such as low-density polyethylene (LDPE) and standard polyethylene (PE). ApiJect's containers are made of LDPE, a common material used in most pharmaceutical manufacturing today, particularly when it comes to drug product holding bags and carboys.

The inherent malleability of plastic makes it possible for BFS to manufacture containers in a nearly infinite number of volumes and shapes. In order to maintain efficiency and ensure quality, ApiJect has created a range of molds to fill all major injectable drug dose sizes.

Thermometer

Controlling Fill Temperature

Filling temperature is often a concern when filling delicate molecules in BFS, because the drug or vaccine is filled into a hot plastic container. But thanks to recent research and advancements in BFS technology, these issues can be largely mitigated.

ApiJect utilizes the Rommelag® “cool BFS” process to gently handle the product to ensure the temperature peak and duration are minimized. Through many experimental designs, ApiJect understands the factors to control to protect the product from heat exposure.
